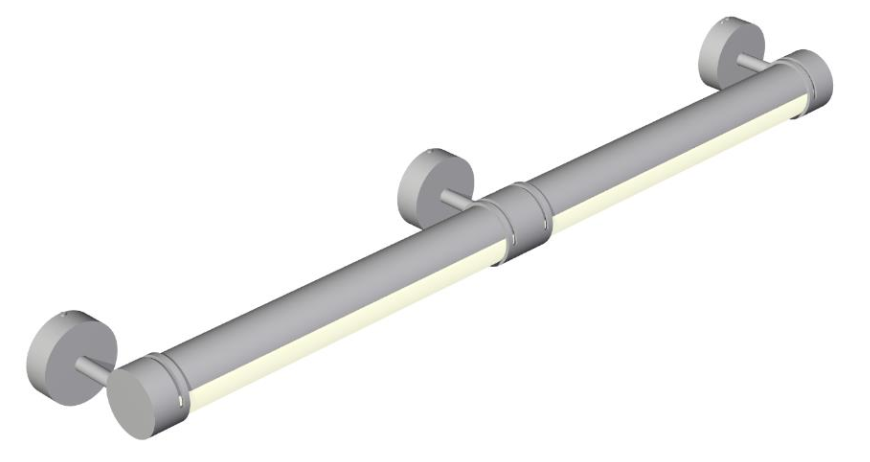

The versatility of the Duō Series continues with the introduction of the CSW. Designed specifically for wall mount applications the CSW sports three wall standoff options for positioning the fixture. Accompanied by one-hundred-fifty-degree articulation which can be mounted to illuminate upward or downwards, the applications for CSW are virtually limitless.

Utilizing the proven dual row LED light engine design, the CSW is available in both a standard and high output configuration capable of delivering over five-hundred-twenty-five (525+) lumens per foot. To expand the CSW versatility, fixtures can be coupled together with union fittings to form a longer continuous fixture run. As with all Prolume fixtures, the CSW is available in one inch increments up to ninety-six inches (96”) as single fixture and up to two-hundred-fifty-two inches (252”) when coupled with the optional unions. Finally the CSW has a
wet rating option available

Key Features

Download

  • Made in America quality and craftsmanship
  • Customizable fixture lengths, CCT and CRI available
  • Five CCTs and four colored LED options
  • Natural anodized aluminum or white powder coated finish standard; custom color powder coats available
  • Daisy chain or connect multiple fixtures to a single driver
  • 150° Built-in articulation

Quick Specifications

Lumen Output: 208 to 528
CRI:  80+ & 90+
Beam Angle:   115°
Lens:  Frosted
Dimmable:  Yes
Onboard Dimming:  No
Fixture Length:  8” min to 96” max
Incremental Length:  1″
Environmental:  Dry, Damp & Wet (IP67)
Warranty:  5 years

Literature

CSW Data Sheet – DS-CSW-2019-v1-0e
Drivers – DS-PHS-2018-V1c
Product Catalog – 2018 Prolume Catalog_v1-1

IES Files
