Description

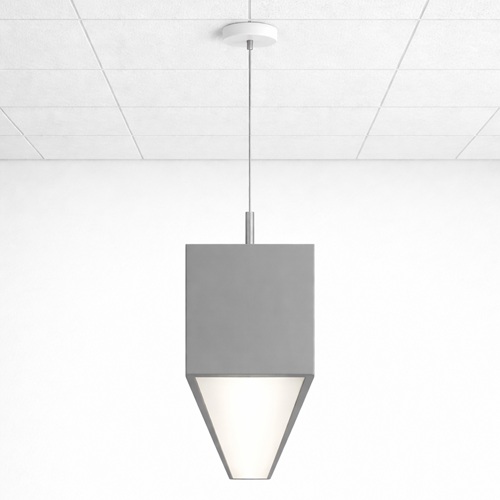

The VEXA Linear Pendant is a constant-voltage, modular architectural luminaire engineered for predictable performance and simplified specification. Available in 4″, 3″, 2″, and 1.5″ apertures, the system delivers 3W, 5W, or 7W per foot output tiers with 90 CRI or high-fidelity SunLike LED options. Optical configurations include Lambertian (LAM), Batwing (BW), and Asymmetric (ASY) distributions for direct emission, with LAM and BW options for indirect components.
Integrated drivers support 0–10V dimming with universal voltage input, while standardized lengths and finishes ensure clean deployment across education, healthcare, and commercial interiors. VEXA is engineered for reliability, efficiency, and application-focused performance—without unnecessary complexity.
Key Features
- Modular Constant-Voltage Architecture
- Integrated Driver Design
- Defined Output Tiers (3W / 5W / 7W per ft)
- Multiple Apertures (4″, 3″, 2″, 1.5″)
- Application-Focused Optics (LAM, BW, ASY)
- 90 CRI and SunLike LED Options
- Standardized Lengths and Finishes
- Universal Voltage with 0–10V Dimming
- Engineered Thermal Management
- System-Based Specification
- BABAA Compliant, Designed and manufactured in America
Downloads
Quick Specifications
| CCT Range: | 2700K to 6000K |
| Color Deviation: | Less than 0.001 Duv |
| Lumen Output: | 2100 to 2400 |
| CRI: | 95 to 99 |
| Beam Angle: | 70° FWHM |
| Lens: | Diffused |
| Dimmable: | Continuous down to 1% |
| Onboard Dimming: | 0 – 10V |
| Fixture Dimensions: | 48″, 96″, 144” L x 2″ W x 3.3″ H |
| Weight: | 5 lbs |
| Certifications: | UL |
| Environmental: | Damp |
| Warranty: | 5 years |
Literature
PERFEKTBeam2 Suspended – Suspended Data Sheet
PERFEKTBeam2 Recessed – Recessed Data Sheet
PERFEKTBeam2 Color Quality – Application Note
IES Files
